Type C vs. Type D FIBC Bags: Which is Safer for Combustible Chemical Powders?

Handling combustible chemical powders requires more than just a strong bag; it requires strict control over electrostatic discharge (ESD). During the filling and discharging of fine powders, friction generates static electricity. If this static accumulates and discharges as a spark in a combustible dust environment, it can trigger an explosion.

For facilities handling reactive chemicals, resins, or combustible minerals, the choice of flexible intermediate bulk containers (FIBCs) usually narrows down to two anti-static options: Type C and Type D. Both are designed to prevent incendiary sparks, but they operate on fundamentally different engineering principles.

Here is a technical breakdown to help your procurement and safety teams make the right choice.

1. Type C FIBCs: The Grounded Solution

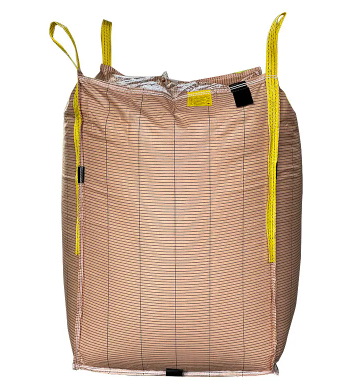

Type C bags are constructed from non-conductive polypropylene (PP) fabrics interwoven with conductive threads (usually carbon or silver) in a grid pattern.

How it works: The conductive threads are interconnected and lead to a grounding point on the bag. When the bag is securely connected to a designated earth ground during filling and discharging, the static electricity safely travels from the bulk material, through the threads, and into the ground.

The Reality in Operation:

• Advantage: Extremely effective at neutralizing static when properly grounded. They are highly reliable in the most sensitive explosive atmospheres (Zones 1, 2, 21, and 22).
• Risk (Human Error): The safety of a Type C bag relies 100% on operator compliance. If an operator forgets to attach the grounding cable, or if the grounding wire is damaged, the bag becomes an isolated conductor. This is extremely dangerous and can lead to massive, high-energy sparks.

2. Type D FIBCs: The Dissipative Solution

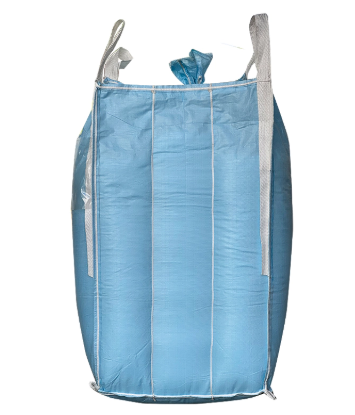

Type D bags are made from specially engineered static-dissipative fabrics (such as CROHMIQ®). They do not have interconnected conductive threads and, crucially, do not require grounding.

How it works:

Type D fabrics safely dissipate static electricity directly into the atmosphere through low-energy corona discharge. The special yarn structure controls the release of charge so that it never accumulates enough energy to create an incendiary spark.

The Reality in Operation:

• Advantage: Eliminates the risk of human error. Since they do not need to be grounded, operator mistakes or broken ground connections will not cause an explosion.
• Risk (Environmental Contamination): Type D bags lose their safe dissipative properties if their surface becomes coated with conductive materials, such as water, grease, or certain conductive powders. They must be kept clean and dry to function safely.

3. Direct Comparison Matrix

4. How to Choose the Right Bag for Your Operation

Choosing between Type C and Type D comes down to evaluating your facility's operational maturity and the specific handling environment:

1. Evaluate Your Workforce and Protocols: If your facility has rigorous safety audits, automated grounding interlocks (where machinery won't run unless ground is verified), Type C is a cost-effective and highly secure option.
2. Assess the Unloading Environment: If the bags are shipped to third-party sites, construction zones, or facilities where you cannot guarantee the operator will attach a grounding clip, Type D is the safer choice. It removes human error from the equation.
3. Check Environmental Conditions: If the handling area is frequently wet or the bags are exposed to grease, Type D poses a risk. Type C (properly grounded) remains effective regardless of surface moisture.

Secure Your Supply Chain with Factory-Direct Quality

At FIBC World, we manufacture both Type C and Type D bulk bags strictly adhering to IEC 61340-4-4 standards. Our production involves rigorous fabric testing, including surface resistivity and breakdown voltage checks, ensuring every batch meets global safety requirements for chemical and industrial exports.

Need a technical assessment for your specific powder?

Share your Material Safety Data Sheet (MSDS) and handling setup with our engineering team. We will provide a clear specification and a factory-direct quotation within 24 hours.
