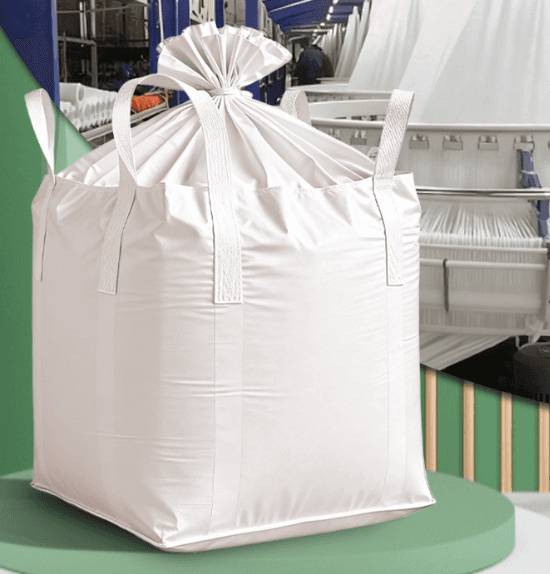

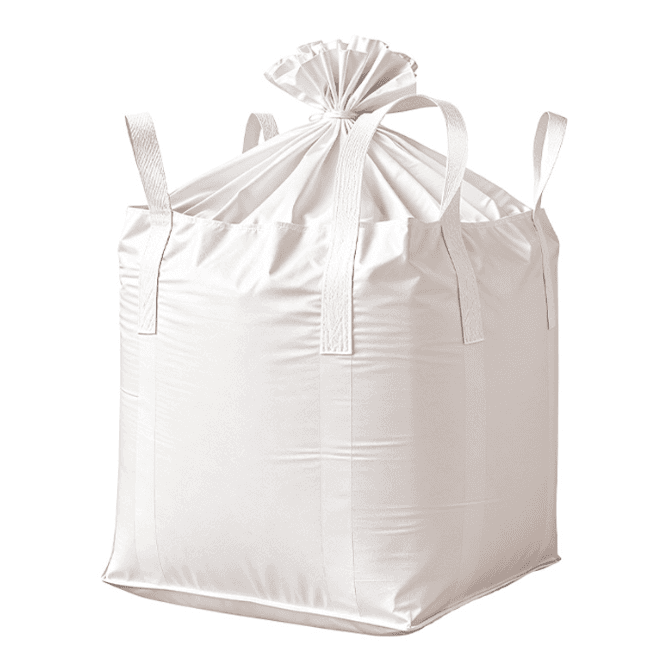

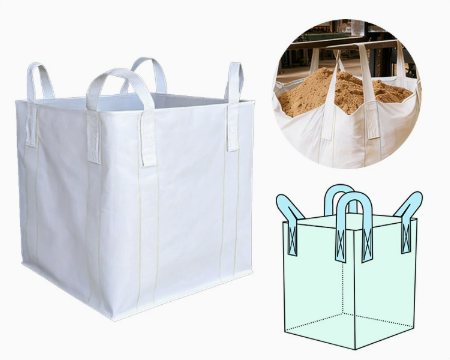

Flat-Bottom FIBC Bulk Bags (Solid Base Big Bags)

Flat-bottom FIBC bulk bags represent the most reliable and structurally integral packaging format for the long-distance shipping of dense aggregates, high-mass chemicals, and industrial commodities. Unlike bags with bottom discharge spouts which introduce circular seams and closure knots at the base panel, a flat-bottom container features a continuous, solid woven fabric foundation.

This layout eliminates structural weak points, providing high linear tear resistance under maximum gravitational downward pressures of 1.0 to 2.5 tons. It is the industrial standard when absolute containment security is required and when materials are discharged via top-vacuum systems, tipping platforms, or secondary manual slitting at the destination.

Core Technical Features

• Seamless, unpenetrated solid base panel fabric

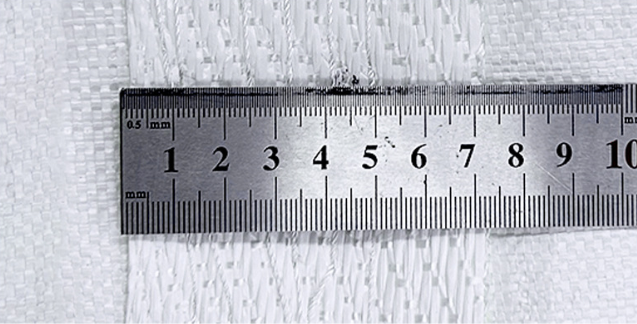

• Multi-needle reinforced corner joint seams to isolate structural load points

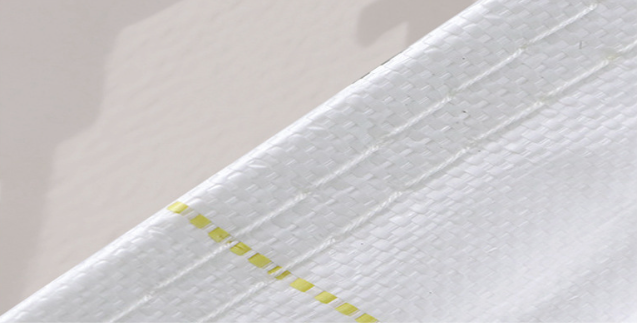

• High-denier polypropylene (PP) fabric with optional double-sided lamination
• Compatible with heavy-duty lift options (4 Corner Loops, Cross-Corner, or Over-Corner Webbing)

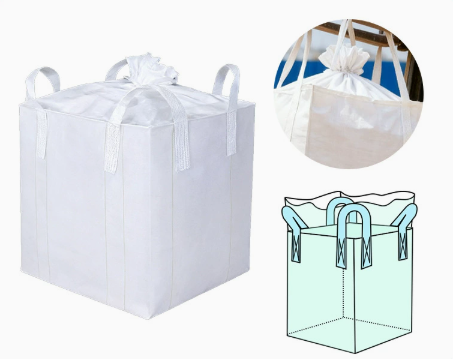

• Adaptable to multiple top enclosures (Open Top, Spout Top, or Drawstring Skirt Top)

Why Choose Flat-Bottom Bulk Bags?

Absolute Leak and Sifting Elimination

Bottom spouts, even when double-tied, have an inherent risk of micro-seaking when subjected to fine, fluid-like powders during ocean vibrations. The solid flat base provides 100% zero-aperture containment, making it the ideal shell when paired with heavy sift-proof felt piping for technical chemical compounds.

Superior Stacked Balance and Alignment

The unyielding, monolithic flat base distributes product mass uniformly across the entire pallet surface. This prevents the center of gravity from sagging downward or shifting laterally, allowing filled containers to be double- or triple-stacked securely in high-cube ocean containers.

High Ground-Friction Resistance

During rugged logistics tracking—such as dragging or repositioning on rough wooden pallets or concrete staging docks—the flat solid base handles mechanical scuffing significantly better than bags with exposed lower spout closures.

Maximized Bottom Tensile Load Limit

By eliminating the central cutout required for discharge sleeves, the base fabric panel preserves its full tensile and weft-breaking strength margins, reducing the risk of bottom-burst failure during high-velocity dynamic crane lifts.

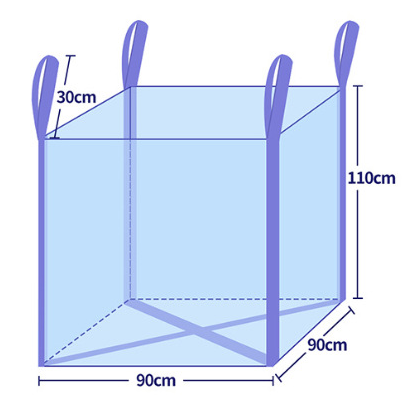

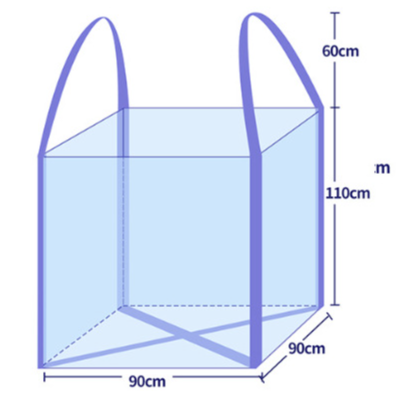

Product Specifications

Industrial Applications

Fine Chemical Powders & Flame Retardants

Packaging for technical chemical compounds where the minor risk of bottom spout leakage or environmental sifting cannot be tolerated.

Engineering Plastics & Compounding Polymers

Wholesale shipping of raw nylon granules, recycled plastic pellets, and high-density compound masterbatches.

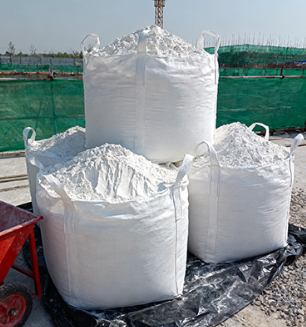

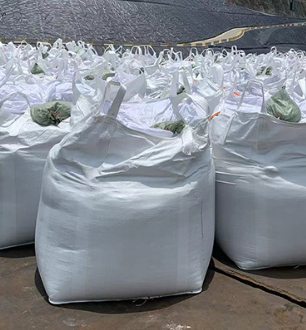

Minerals, Sand, & Metallurgical Concentrates

Safe handling of extreme-mass materials like quartz sand, cement binders, dry mortar, ores, and scrap metal aggregates approaching 2.5 tons.

Flat-Bottom Bags vs. Spout-Discharge Bags

Frequently Asked Questions

1. How are flat-bottom bulk bags safely emptied if they cannot be opened via a spout?

There are three industrial methods: First, using automated unloading systems equipped with hydraulic spikes or mechanical cross-knives that slit the base when the bag is lowered into the hopper. Second, using overhead industrial vacuum suction lines inserted from the top opening. Third, using a tipping rig that inverts the bag 180° to discharge through the top opening.

2. Can flat-bottom bags be used with moisture-proof liners?

Yes. For high-purity chemical or battery materials, we can integrate either a Form-Fit Liner or a multi-layer Aluminum Foil Liner. Since the base is completely flat, the inner liner matches this smooth footprint perfectly, optimizing gas flushing and vacuum sealing efficiencies without any bottom spout constraints.

3. Why is flat-bottom preferred for long-distance maritime freight?

During multi-week ocean transit, container ships face continuous rolling and vibrations. Materials inside bulk bags settle tightly. A bottom discharge spout can create a pivot point that allows fluid-like powders to shift. A flat-bottom bag locks flat against the container floor, expanding outward symmetrically to wedge tightly against adjacent bags, forming a self-stabilizing cargo matrix.

Request a Solid Base Structural Sizing Profile

If you are shipping heavy bulk commodities but do not have full engineering drawings, provide your general operational parameters below. Our engineering team will calculate the correct fabric weight, loop reinforcement, and sizing dimensions:

1. What specific material will you be loading? (e.g., Nylon granules, flame retardants, minerals, industrial chemicals)
2. What is your target cargo weight per bag? (e.g., 1,000kg, 1,500kg, 2,000kg, or 2,500kg)
3. How will the bag be discharged at its destination? (e.g., Slitting the bottom, top vacuum suction, or inversion tipping)
4. Does your material require isolation from moisture or air? (e.g., Integrated PE liner or Aluminum Foil liner requirement)

Our technical engineering team will review your application requirements and generate structural specifications alongside a commercial quotation.
